Removing and inserting the brew group
Go to the 'Status' menu on the screen and select 'Brew group clean' or visit www.saeco.com/care for detailed video instructions on how to remove, insert and clean the brew group.
Removing the brew group from the machine

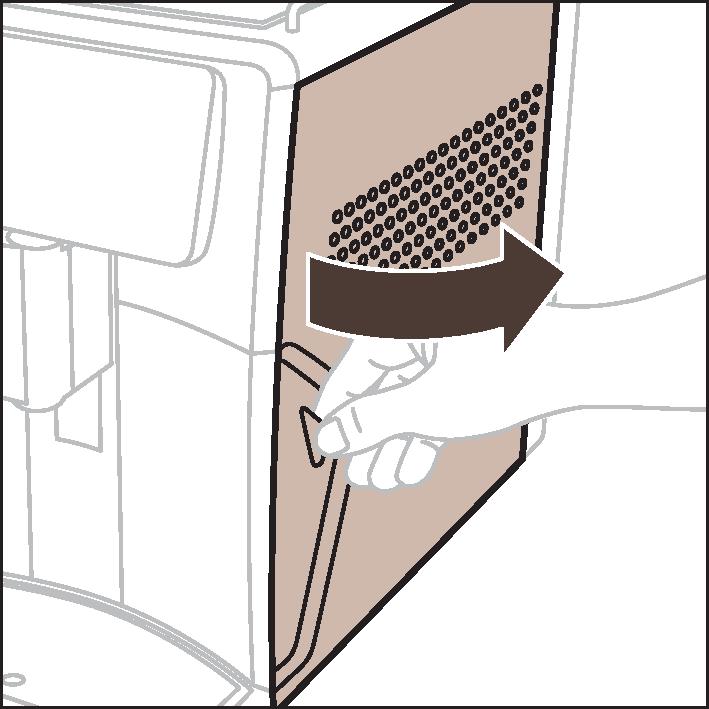

1 Open the service door.
2 Remove the coffee residues drawer.
3 Press the PUSH button and pull at the grip of the brew group to remove it from the machine.
Reinserting the brew group
Before you slide the brew group back into the machine, make sure it is in the correct position.
1 Check if the arrow on the yellow cylinder on the side of the brew group is aligned with the black arrow and N.
- If they are not aligned, push down the lever until it is in contact with the base of the brew group.
2 Make sure that the yellow locking hook on the other side of the brew group is in the correct position.
- To position the hook correctly, push it upwards until it is in uppermost position.
3 Slide the brew group back into the machine along the guiding rails on the sides until it locks into position with a click. Do not press the PUSH button.
4 Place back the coffee residues drawer and close the service door.
